Rotary Cutter (nozzle) GH 120
- Details
- Written by webadmin
- Category: materials
 |

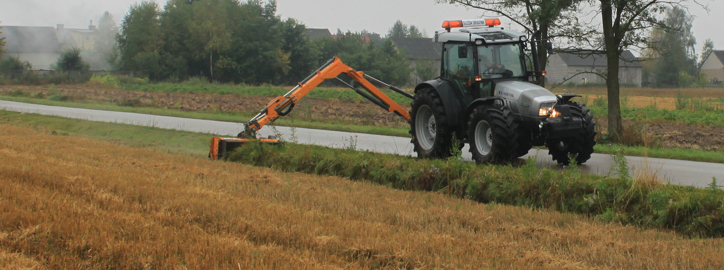

GH 120 - rotary mower (hydraulic head) is used for mowing grass and shrub whose diameter does not exceed 8-9sm.
Thanks to the rear skater mower can cut grass and bushes of different heights.
The compact design provides smooth operation and security services when working in urban areas, city streets, etc.
Rolmex - offers rotary mowers GH with another working shirinoyGH130 / GH140 and very heavy GK150.
| technical characteristics | GH 120 | |
| Working width | 120 cm. | |
| Blades 'T' | 18 pcs. | |
| Blade "Y" | 54 pcs. | |
| Operating speed of the rotor | 3000 rev. / Min. | |
| Working speed of the tractor | 1.5 - 4 km.ch. | |
| The angle of inclination of the head |
-235o / +235o |
|
| Maximum operating pressure | 250 bar | |
| oil consumption | 110-115 liters per minute. | |
| Maximum power to the rotor | 55 hp (41) kW | |
| Dimensions: Shire. x Length x Height | 130x60x42 cm. | |
| weight | 295 kg. | |
| Compatible with ROLMEX | KR 600 и KR 600 Z | |
|
Standard rotor |
special rotor |
Special rotor "H" |
||||
|
type |
 |
 |
 |
 |
||
| Knife type "YI" for grass and shrubs | Knife type "T6" for shrubs, trees and grass |
Knife type "Y" for grass
|
uneversalny knife type "H" for trees, shrubs and herbs | |||
|
Max. |
MAX Ø 5cm | MAX Ø 6cm | MAX Ø 3cm | MAX Ø 8cm | ||
