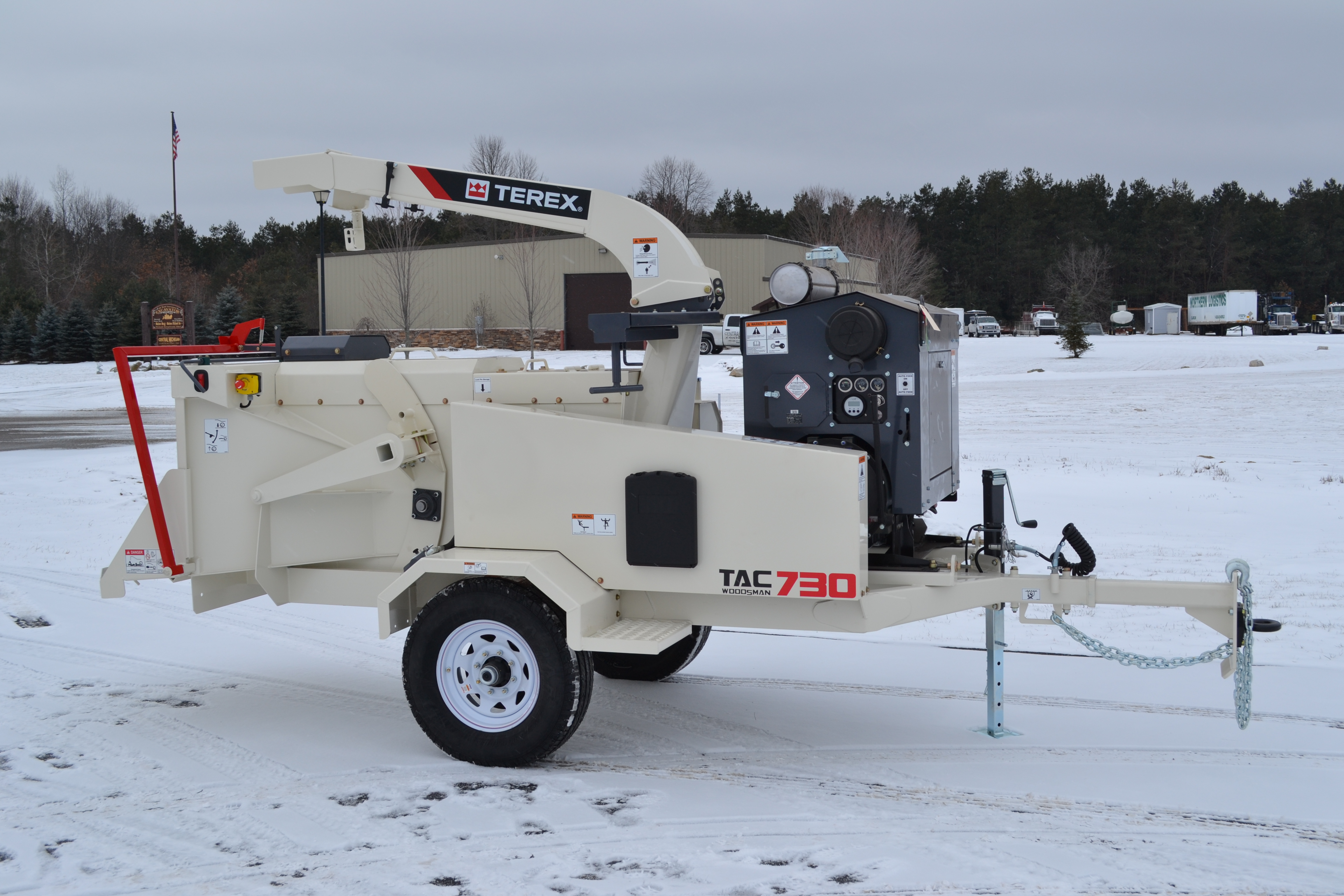

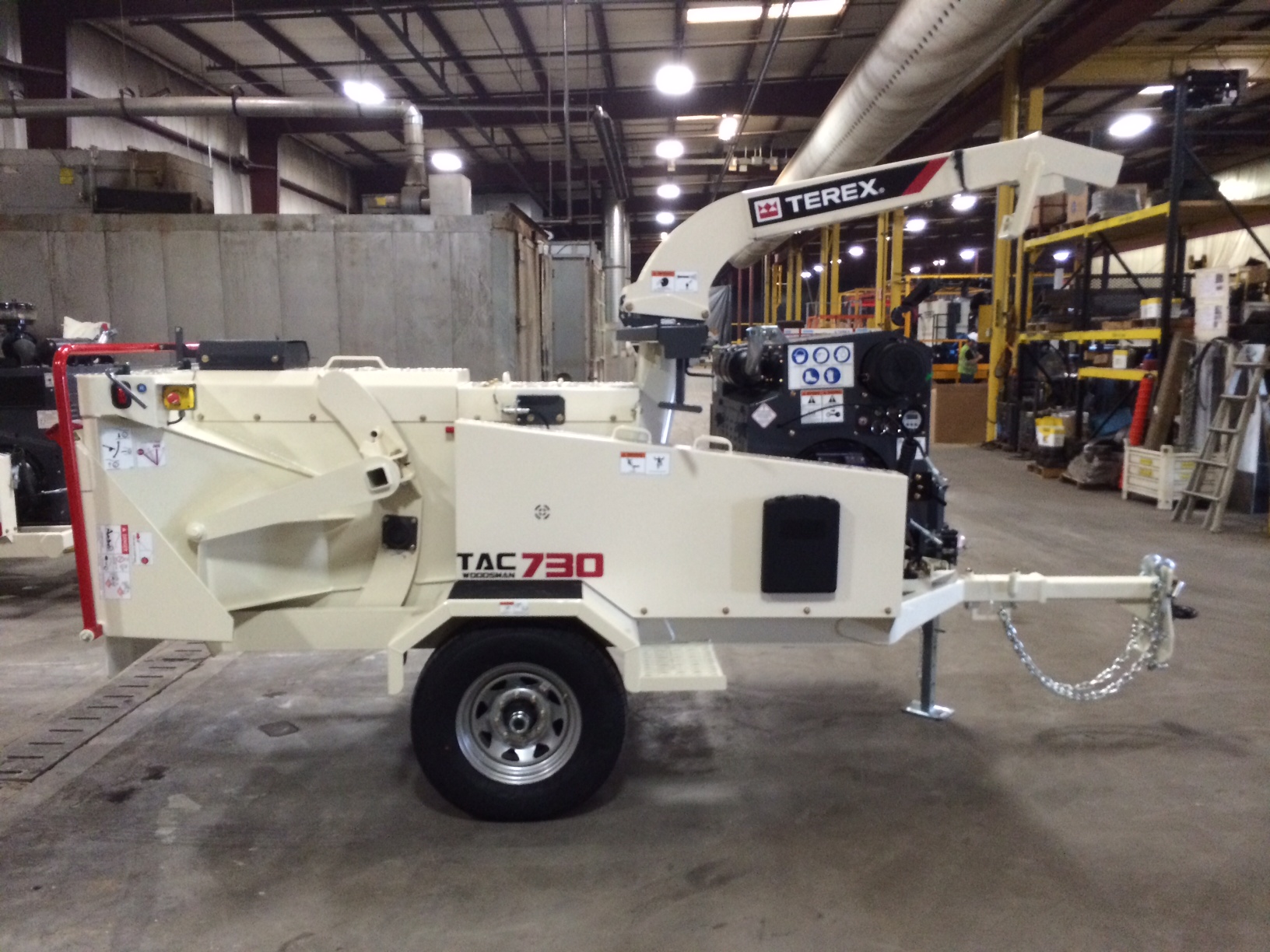

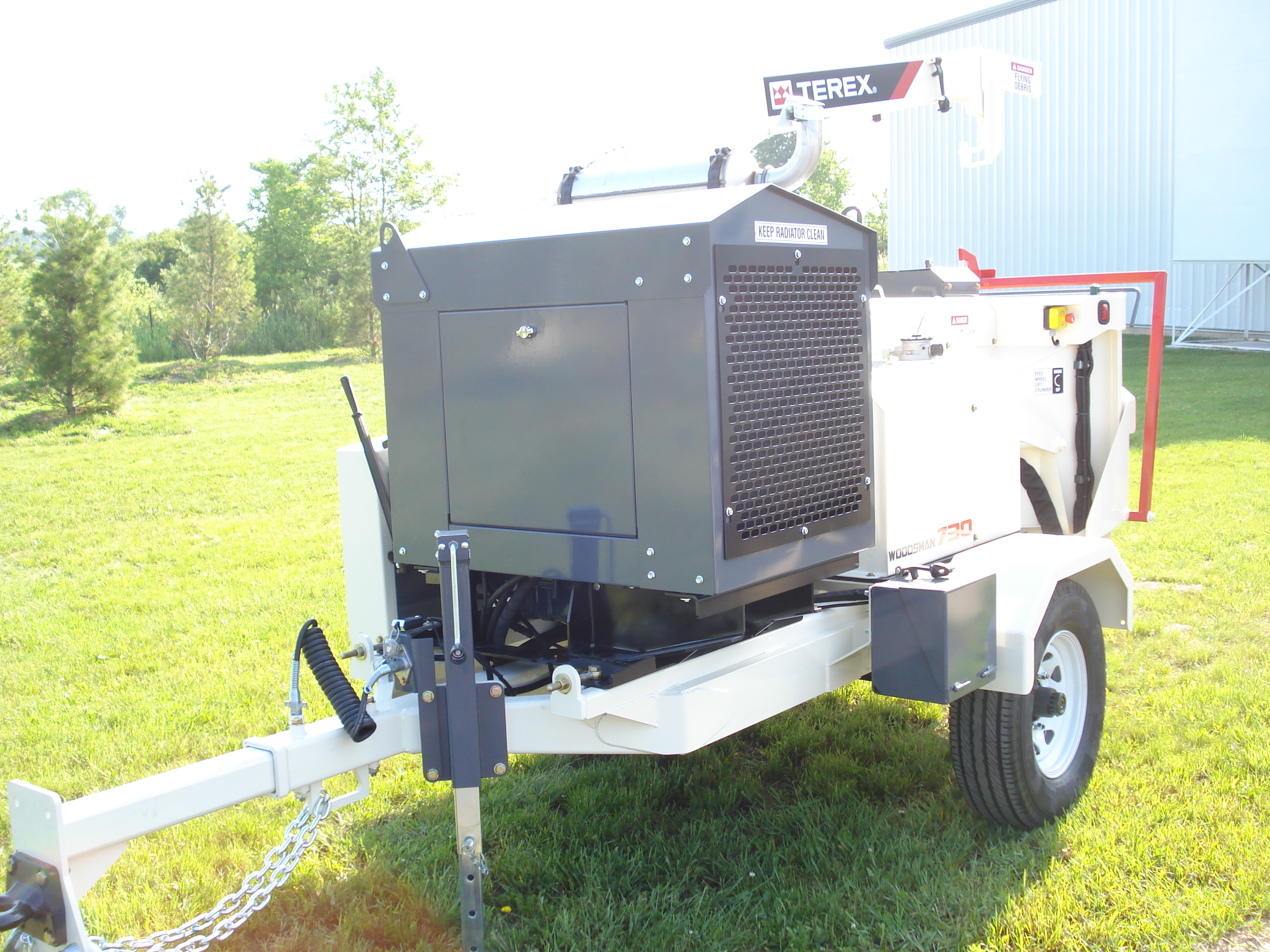

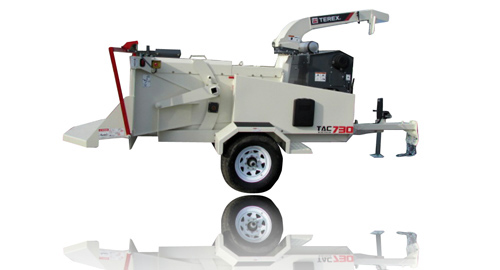

Mobile chipper TAC-730
Mobile chipper TAC-730 from the company TEREX Environmental Equipment (USA), is designed for processing wood waste (branches, bushes, vershinki, Christmas trees) maximum diameter of 330 mm. The machine is located on its own landing gear (wheels 245/75 R16) and is equipped with a towbar for the transportation of vehicles (tractors, trucks). The chassis is equipped with a brake system and the rear light signaling. The machine frame is made of channel 101.6 mm. Tow hitch is height adjustable and equipped with a mechanical jack, as well as a safety chain with two hooks.
Submission of material to the chipper knives made through the guide feeder with hydraulic top (diameter 355 mm) roller, pressed down and force feed material for grinding. The upper roller can be lifted hydraulically, that allows along with a long material to process lumpy waste. Furthermore, when processing a heavy material, the operator may increase the force pressing the upper roller material. The machine is equipped with its own hydraulic system (oil tank, hydraulic pump). System volume - 45 liters.
Recycling mother in chips, made four blades (two in each cutter knife pocket), mounted on the drum diameter of 609 mm. The length of one chipper pocket is 457 mm. Chipping knives have two chopping hand. Anvil has four working faces.
Release of chips produced through outlet tube, rotating 300 °. The throw chips regulated valve on the output tube. Adjusting the pipes and valves - mechanical. The pipe has an openable bottom for possible inspection.
TAC-730 is equipped with an automatic control system feeder, which is a feedback system (engine speed - the rotation of the drive roller). In the fall of revolutions of the drive motor - feed roller stops automatically until normal engine speed. Direction control of the feed roller (forward, stop, reverse, emergency stop) displayed the same way on the handle, which is located at the end of the supply feeder.

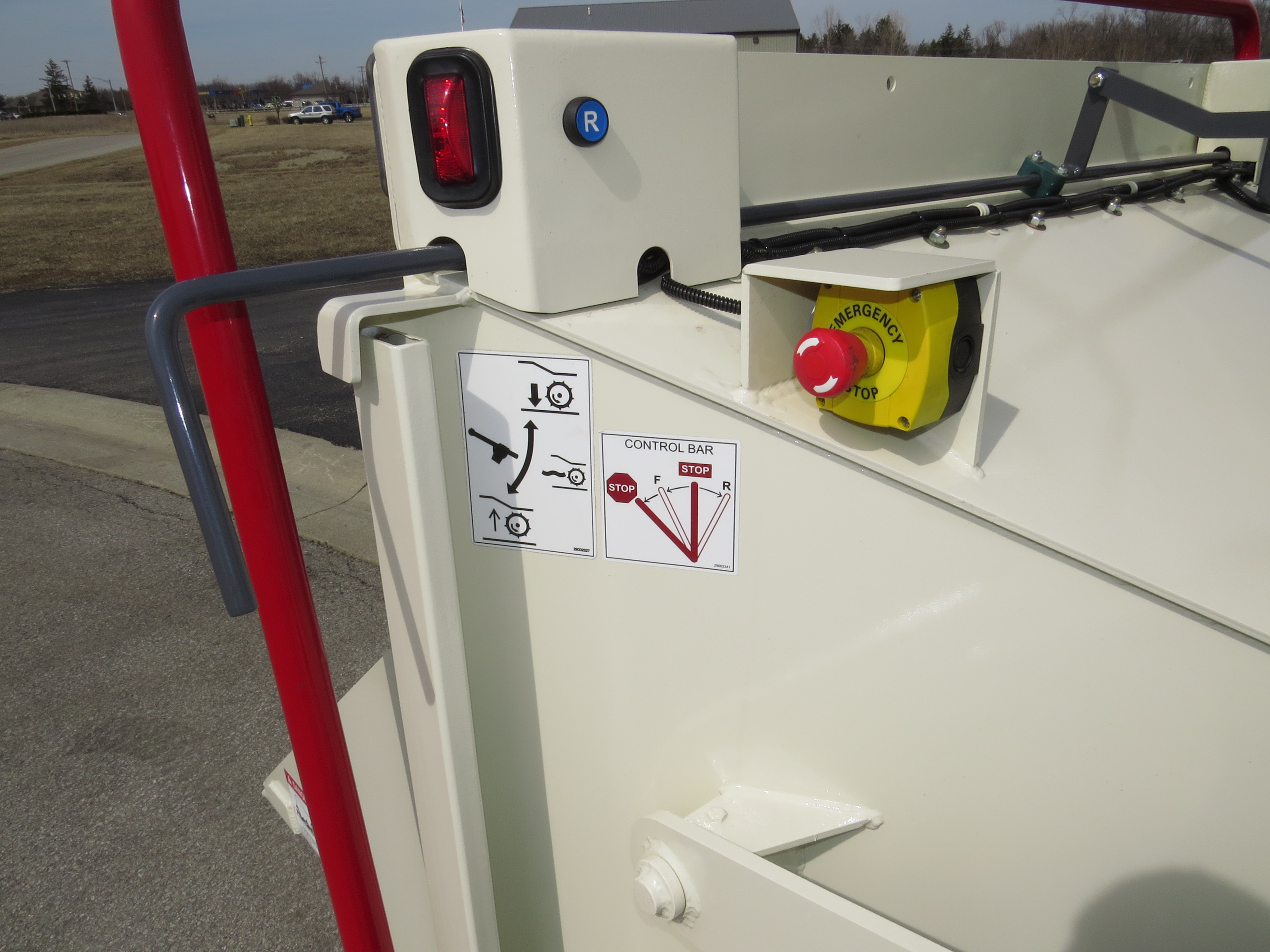

On the outside is dosed installed safety switches (one on each side) to allow instantaneous stop the machine in an emergency situation. The machine is provided with foldable end feed which is raised to the upper position during transport and reduces the length of the machine to 4.70 m.
The engine control unit is equipped with a digital display, which displays the fuel level indicators, hours of operation, voltage, temperature of the surrounding liquid, oil pressure, engine speed. The system automatically turns off the engine when: engine overheating; low oil pressure. Battery - 12 is in the closed metal box.
- The drive motor Kohler V3 (84.5 hp)
- The warranty for chipper - 1 year.
Options for TAC 730:
-
Handle height adjustment pin tube chip
Hydraulic rotation output pipes for chips
Limit switch on the door for access to the engine
Radiator protection
Hydraulic speed control feed roller
Prtivootkatov holder (2 pieces)
Protivootkatov holder (2 pieces) and the rubber wheel chock (2 items)
Cone holder
Holders flags
Overall whips
Tool box (steel)
Fenders
Spare tire 245/75 R16
Spare wheel
Set of keys for replacement blades
Flashing beacons
Protection block rear light signaling LEXON
Hydraulic winch (including cable 36 meters)
Источник: http://www.workwebsite.ru/joomla/plugins/allvideos.html
|
model |
disk |
|
Download window before the knives (at the output feed hopper) (height * width) |
330 х 457 mm |
|
Window loading inlet feed hopper (height * width) |
749 х 1270 mm |
|
length chips |
-- mm |
|
The thickness of the chip |
-- mm |
|
Number of blades on the disk |
4 knives (one working face) |
|
The dimensions of the blades (dl. * Br. * Thick.) |
304 * 127 * 12 mm (two blades) 152 * 127 * 12 mm (two blades) |
|
anvil horizontal |
1 piece (four working faces), steering |
|
Number knife pockets on the drum |
2 pcs |
|
Number of knives in the knife pocket |
2 pcs |
|
drum chipper |
Diameter: 609 mm, width 457 mm |
|
The diameter of the shaft |
62 mm (Bullet Proof) |
|
Drum speed |
1132 rev / min |
|
performance |
to -- t/h |
|
feed system |
The upper feed roller diameter 355 mm, length 457 mm |
|
Lift system and an additional clip of a material |
an upper feed roller |
|
Automatic feeding system |
No Stress |
|
The feed rate of material |
39.3 m / min |
|
hydraulic system |
"Live" hydraulic pump with a direct drive, a modular valve block |
|
Power installed engines |
Kohler V3 84.5 hp (preheater) |
|
fuel tank |
72 liters, visual level indicator, filler neck with lockable lid |
|
oil tank |
45 liters with filter, visual level indicator, filler neck with lockable lid |
|
fuel consumption |
-- l/h |
|
Exhaust pipe for chips |
Rotation 300 °, opened the lower part, adjustable dampers for chips |
|
Adjusting the height of the pipe |
in three positions |
|
jack reference |
Mechanical load capacity of 3180 kg |
|
Tow hitch on the choice of the "ring" of 63 mm or type "ball" |
58 mm |
|
safety chains |
Thickness - 9 mm with hooks |
|
Landing Gear |
Torflex load 2730 kg, with electric brakes and emergency stop switch |
|
bus |
245/75 R16 (2 pcs) |
|
Dimensions of the machine working (length * width * height) |
5,39*2,67*1,88 m |
|
Dimensions of the machine transport (length * width * height) |
4,67*2,67*1,88 m |
|
machine weight |
2360 kg |

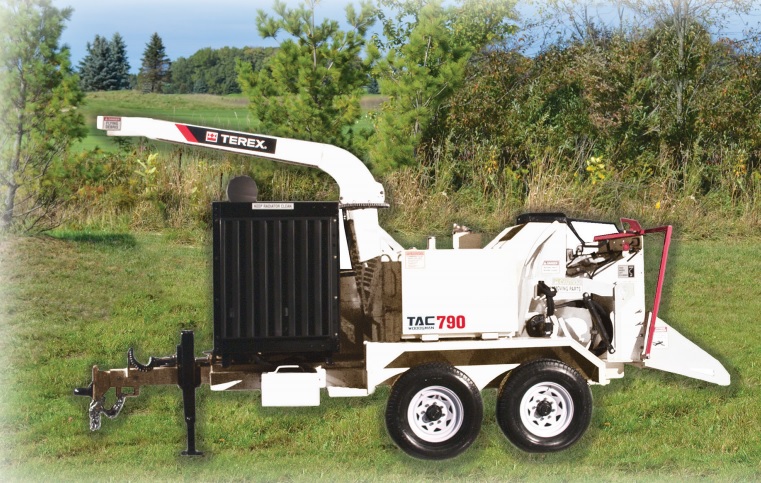

Mobile chipper TAC-790
Mobile chipper TAC-790 from the company TEREX Environmental Equipment (USA), is designed for processing wood waste (branches, bushes, vershinki, Christmas trees) maximum diameter of 533 mm. The machine is located on its own landing gear (wheels 235/75 R16) and is equipped with a towbar for the transportation of vehicles (tractors, trucks). The chassis is equipped with a brake system and the rear light signaling. The machine frame is made of channel 6 mm thick. Tow hitch adjustable in height and length (option) and is equipped with a mechanical jack, as well as a safety chain with two hooks.
Submission of material to the chipper knives made through the guide feeder with hydraulic top (diameter 495 mm) roller, pressed down and force feed material for grinding and lower feed conveyor chain dlinoy183 cm. The upper roller can be raised hydraulically, which allows in addition to the long material process lumpy waste. Furthermore, when processing a heavy material, the operator may increase the force pressing the upper roller material. The machine is equipped with its own hydraulic system (oil tank, hydraulic pump). Volume of the system - 91 liter. Recycling mother in chips, made four blades (two in each cutter knife pocket), mounted on the drum diametrom940 mm. The length of one chipper pocket is 912 mm. Chipping knives have two chopping hand. Anvil has four working faces.
Release of chips produced through outlet tube, rotating 300 °. The throw chips regulated valve on the output tube. Adjusting the pipes and valves - mechanical. The pipe has an openable bottom for possible inspection.
TAS-790 is equipped with an automatic control system feeder, which is a feedback system (engine speed - the rotation of the drive roller). In the fall of revolutions of the drive motor - feed roller stops automatically until normal engine speed. Direction control of the feed roller (forward, stop, reverse, emergency stop) displayed the same way on the handle, which is located at the end of the supply feeder.
On the outside is dosed installed safety switches (one on each side) to allow instantaneous stop the machine in an emergency situation. The engine control unit is equipped with a digital display, which displays the fuel level indicators, hours of operation, voltage, temperature of the surrounding liquid, oil pressure, engine speed. The system automatically turns off the engine when: engine overheating; low oil pressure, low fuel pressure.

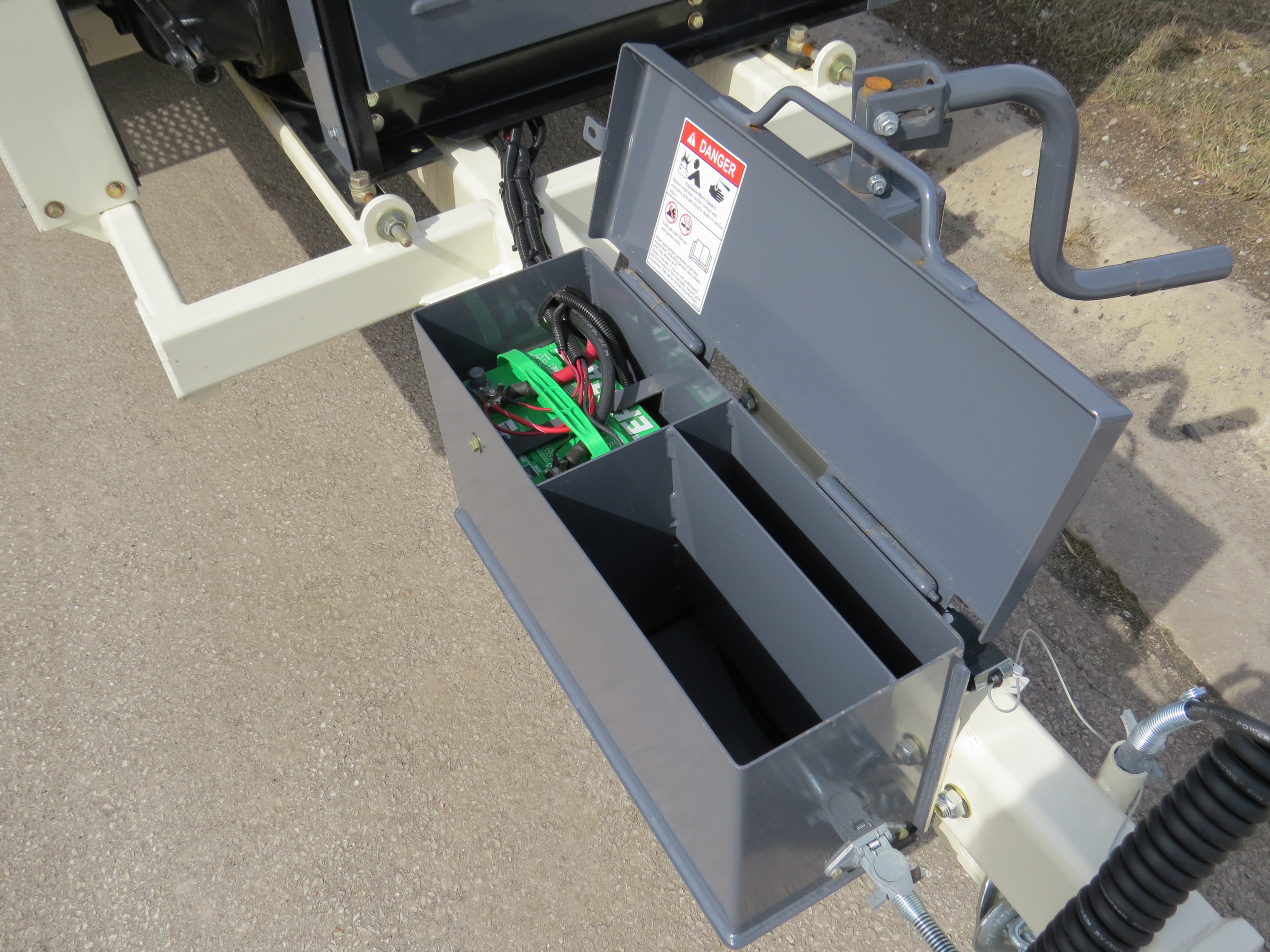

Battery - 12 is in the closed metal box. Just shredder is equipped with a lockable tool box.
The drive motor CAT Tier 3 (250 hp)
The warranty for chipper - 1 year.
Options for TAC 790:
Two-speed tracked chassis with rubber tracks controlled by a multi-function wireless remote control unit model 305 CR
Clutch PT TECH HPT010T (170-250 hp)
Clutch PT TECH HPT012TD (250-460 hp)
Precleaner
Hydraulic adjustment of valve chip
Hydraulic rotation output pipes for chips
Limit switch on the door for access to the engine - in the database
Radiator protection - in the database
Hydraulic speed control feed roller - in the database
Prtivootkatov holder (2 pieces)
Protivootkatov holder (2 pieces) and the rubber wheel chock (2 items)
Cone holder
Holders flags
Overall whips
Dual rear stabilizer
Fenders
Spare wheel 235/75 R17,5
Spare wheel
Set of keys for replacement knives - in database
Flashing beacons
Protection block rear light signaling LEXON
Hydraulic winch (including cable 36 meters)
Multi-function wireless remote control
Hydraulic manipulator (boom 457 cm) with support legs
Источник: http://www.workwebsite.ru/joomla/plugins/allvideos.html
|
model |
tympanic |
|
Download window before the knives (at the output feed hopper) (height * width) |
533 х 914 mm |
|
Window loading inlet feed hopper (height * width) |
914 х 1930 mm |
|
length chips |
около 13 mm |
|
The thickness of the chip |
около 5 mm |
|
Number of knives on the drum |
6 knives (two working faces) |
|
The dimensions of the blades (dl. * Br. * Thick.) |
304*127*16 mm |
|
anvil horizontal |
1 piece (four working faces), steering |
|
Number knife pockets on the drum |
2 pcs |
|
Number of knives in the knife pocket |
3 pcs |
|
drum chipper |
Diameter: 940 mm, width 914 mm |
|
The diameter of the shaft |
74 mm (Bullet Proof) |
|
Drum speed |
1279 rev / min |
|
performance |
to - t / h |
|
feed system |
The upper feed roller diameter 495 mm, length 914 mm |
|
Lift system and an additional clip of a material |
an upper feed roller |
|
Automatic feeding system |
No Stress reversing material |
|
The feed rate of material |
29.8 m / min |
|
hydraulic system |
"Live" hydraulic pump with a direct drive, a modular valve block |
|
Power installed engines |
CAT Tier 3 (250 hp) (preheater) |
|
fuel tank |
227 liters, visual level indicator, filler neck with lockable lid |
|
oil tank |
91 liter filter, visual level indicator, filler neck with lockable lid |
|
fuel consumption |
-- l/h |
|
Exhaust pipe for chips |
Rotation 300 °, opened the lower part, adjustable dampers for chips |
|
Adjusting the height of the pipe |
in three positions |
|
jack reference |
Mechanical load capacity 4535 kg |
|
Tow hitch on the choice of the "ring" of 63 mm or type "ball" |
Type "ring" 76 mm |
|
safety chains |
Thickness - 9 mm with hooks |
|
Landing Gear |
Torflex load 4535 kg, with electric brakes and emergency stop switch |
|
bus |
235/75 R16 (4 pcs) |
|
Dimensions of the machine working (length * width * height) |
6,35*3,38*2,56 m |
|
Dimensions of the machine transport (length * width * height) |
6,35*3,38*2,56 m |
|
machine weight |
5443 kg |

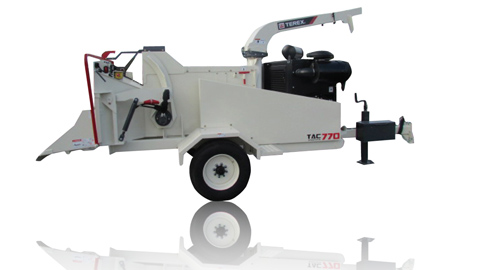

Mobile chipper TAC-770
Mobile chipper TAC-770 from the company TEREX Environmental Equipment (USA), is designed for processing wood waste (branches, bushes, vershinki, Christmas trees) maximum diameter of 482 mm. The machine is located on its own landing gear (wheels 265/75 R17,5) and is equipped with a towbar for the transportation of vehicles (tractors, trucks). The chassis is equipped with a brake system and the rear light signaling. The machine frame is made of channel 6 mm thick. Tow hitch adjustable in height and length (option) and is equipped with a mechanical jack, as well as a safety chain with two hooks.
Submission of material to the chipper knives made through the guide feeder with hydraulic top (diameter 495 mm) roller, pressed down and force feed material for grinding. The upper roller can be lifted hydraulically, that allows along with a long material to process lumpy waste. Furthermore, when processing a heavy material, the operator may increase the force pressing the upper roller material. The machine is equipped with its own hydraulic system (oil tank, hydraulic pump). System volume - 87 liters.
Recycling mother in chips, made four blades (two in each cutter knife pocket), mounted on the drum diameter of 939 mm. The length of one chipper pocket is 609 mm. Chipping knives have two chopping hand. Anvil has four working faces.
Release of chips produced through outlet tube, rotating 300 °. The throw chips regulated valve on the output tube. Adjusting the pipes and valves - mechanical. The pipe has an openable bottom for possible inspection.
TAC-770 is equipped with an automatic control system feeder, which is a feedback system (engine speed - the rotation of the drive roller). In the fall of revolutions of the drive motor - feed roller stops automatically until normal engine speed. Direction control of the feed roller (forward, stop, reverse, emergency stop) displayed the same way on the handle, which is located at the end of the supply feeder.
On the outside is dosed installed safety switches (one on each side) to allow instantaneous stop the machine in an emergency situation. The machine is equipped with a folding butt supply, which rises to the top position during transport and reduces the length of the machine to 5.49 m. The engine control unit is equipped with a digital display, which displays the fuel level indicators, hours of operation, voltage, temperature of the surrounding liquid, oil pressure, engine speed. The system automatically turns off the engine when: engine overheating; low oil pressure, low fuel pressure. Battery - 12V is in the closed metal box. Chopper is equipped with a lockable tool box.
- The drive motor John Deer Power tech E 6.8 L (200 hp)
- The warranty for chipper - 1 year.
Options for TAC 770:
-
Two-speed tracked chassis with rubber tracks controlled by a multi-function wireless remote control unit
CUMMINS QSB 4.5 (160 hp)
JOHN DEER 4.5N (140 hp)
Clutch PT TECH HPT80T (80-170 hp)
Clutch PT TECH HPT010T (170-250 hp)
Precleaner
An enhanced system feed (increase inlet to 457h609 mm)
Handle height adjustment pin tube chip
Hydraulic rotation output pipes for chips
Limit switch on the door for access to the engine
Radiator protection
Hydraulic speed control feed roller
Prtivootkatov holder (2 pieces)
Protivootkatov holder (2 pieces) and the rubber wheel chock (2 items)
Cone holder
Holders flags
Overall whips
Tool box (steel)
Front hydraulic support leg
Fenders
Spare wheel 235/75 R17,5
Dual chassis load capacity on each axle 3175 kg
Spare wheel
Set of keys for replacement blades
Flashing beacons
Protection block rear light signaling LEXON
Hydraulic winch (including cable 36 meters)
Источник: http://www.workwebsite.ru/joomla/plugins/allvideos.html
|
model |
tympanic |
|
Download window before the knives (at the output feed hopper) (height * width) |
482 х 609 mm |
|
Window loading inlet feed hopper (height * width) |
914 х 1625 mm |
|
length chips |
-- mm |
|
The thickness of the chip |
-- mm |
|
Number of knives on the drum |
4 knife (two working faces) |
|
The dimensions of the blades (dl. * Br. * Thick.) |
304*127*16 mm |
|
anvil horizontal |
1 piece (four working faces), steering |
|
Number knife pockets on the drum |
2 pcs |
|
Number of knives in the knife pocket |
2 pcs |
|
drum chipper |
Diameter: 939 mm, width 609 mm |
|
The diameter of the shaft |
74 mm (Bullet Proof) |
|
Drum speed |
1279 rev / min |
|
performance |
to -- t/h |
|
feed system |
The upper feed roller diameter 495 mm, length 609 mm |
|
Lift system and an additional clip of a material |
an upper feed roller |
|
Automatic feeding system |
No Stress reversing the material |
|
The feed rate of material |
29,8 m/m |
|
hydraulic system |
"Live" hydraulic pump with a direct drive, a modular valve block |
|
Power installed engines |
John Deer Power tech E 6.8 L 200 hp (preheater) |
|
fuel tank |
190 liters, visual level indicator, filler neck with lockable lid |
|
oil tank |
87 liters with filter, visual level indicator, filler neck with lockable lid |
|
fuel consumption |
-- l/h |
|
Exhaust pipe for chips |
Rotation 300 °, opened the lower part, adjustable dampers for chips |
|
Adjusting the height of the pipe |
in three positions |
|
jack reference |
Mechanical load capacity 4535 kg |
|
Tow hitch on the choice of the "ring" of 63 mm or type "ball" |
Type "ring" 76 mm |
|
safety chains |
Thickness - 9 mm with hooks |
|
Landing Gear |
Torflex load 4535 kg, with electric brakes and emergency stop switch |
|
bus |
235/75 R17,5 (2 pcs) |
|
Dimensions of the machine working (length * width * height) |
6,12*2,84*2,39 m |
|
Dimensions of the machine transport (length * width * height) |
5,49*2,84*2,39 m |
|
machine weight |
4082 kg |

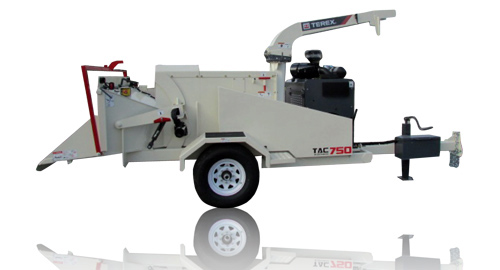

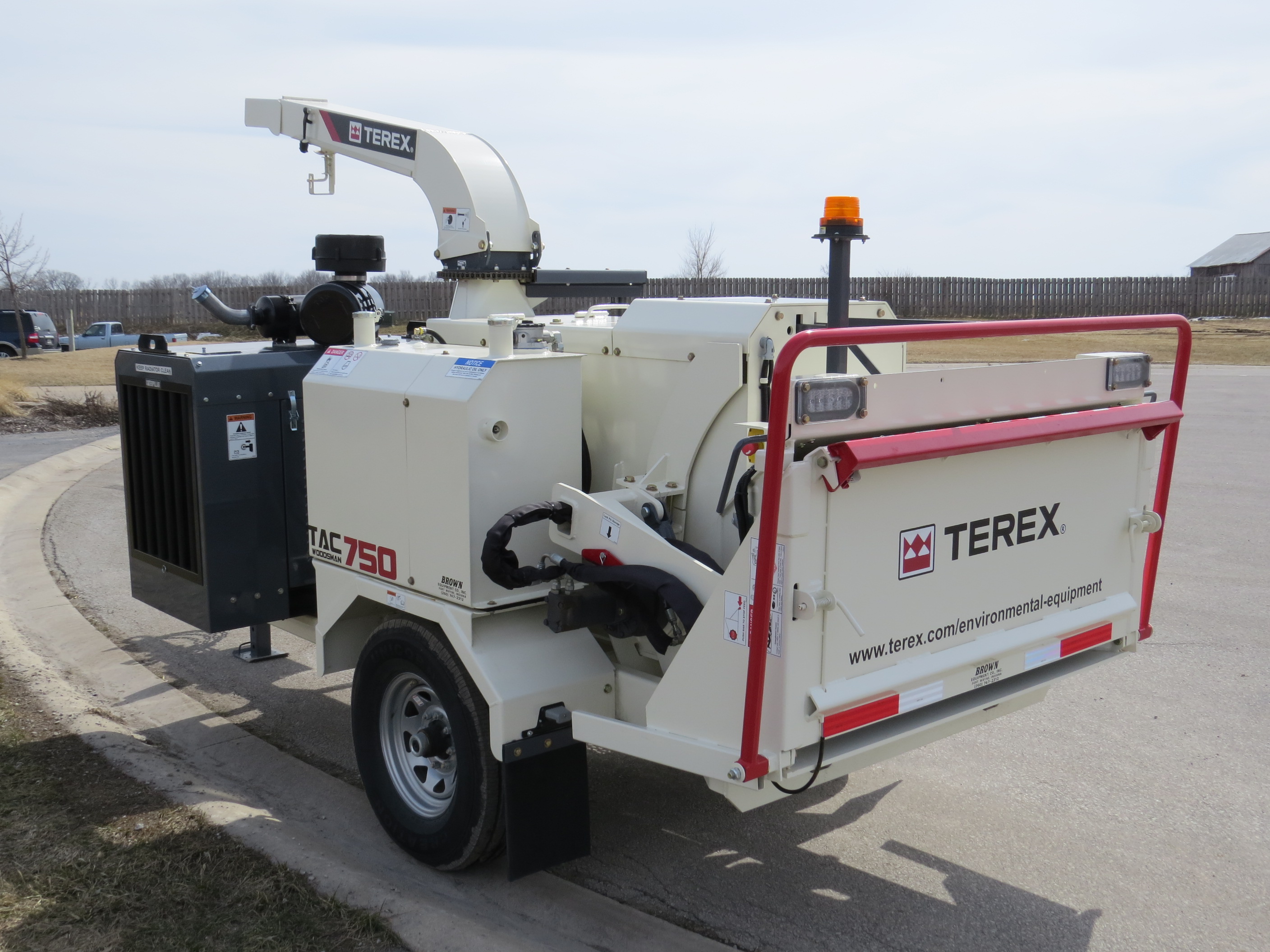

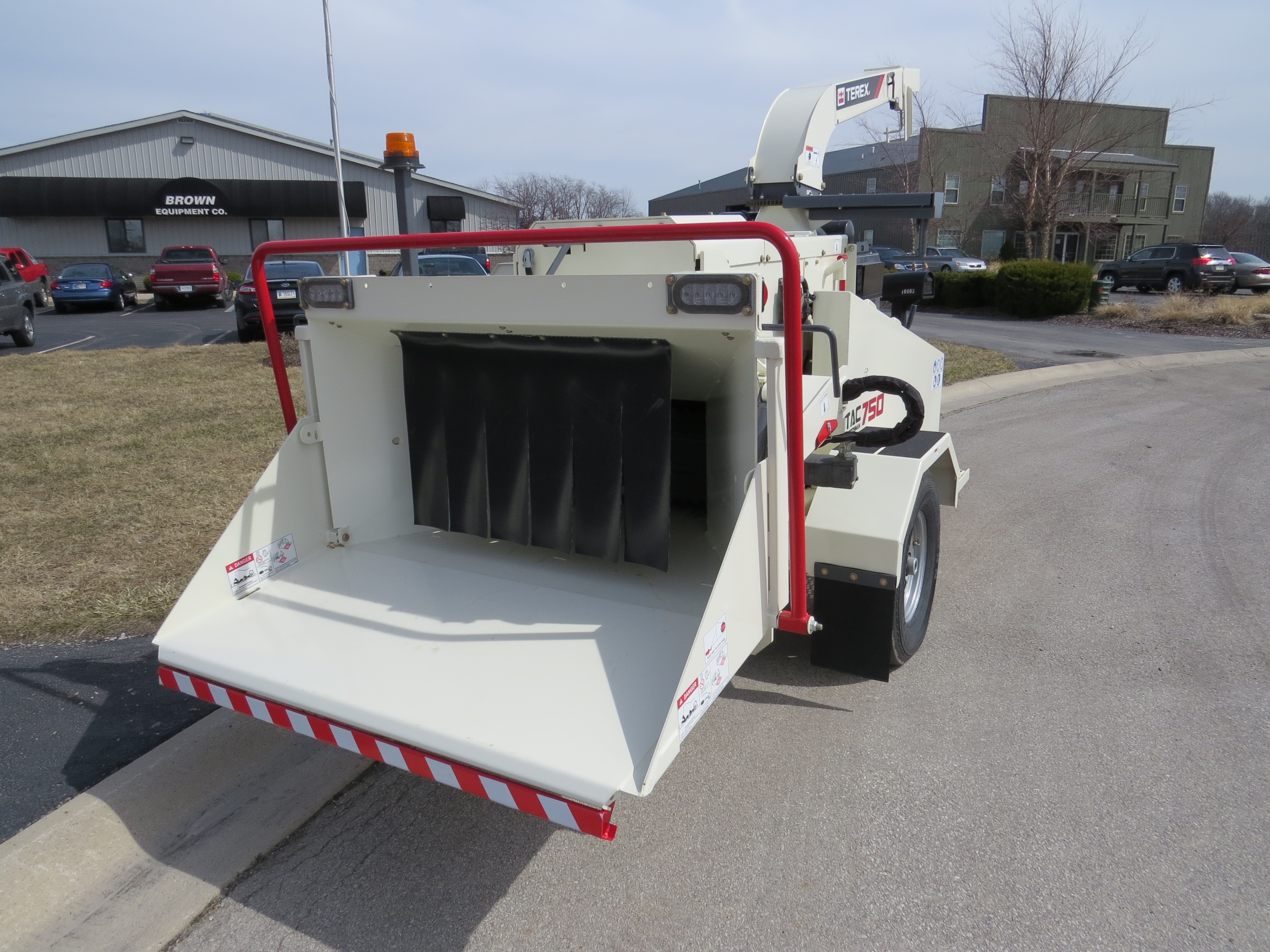

Mobile chipper TAC-750
Mobile chipper TAC-750 from the company TEREX Environmental Equipment (USA), is designed for processing wood waste (branches, bushes, vershinki, Christmas trees) maximum diameter of 406 mm.
The machine is located on its own landing gear (wheels 265/75 R16) and is equipped with a towbar for the transportation of vehicles (tractors, trucks). The chassis is equipped with a brake system and the rear light signaling. The machine frame is made of channel 6 mm thick. Tow hitch adjustable in height and length (option) and is equipped with a mechanical jack, as well as a safety chain with two hooks.
Submission of material to the chipper knives made through the guide feeder with hydraulic top (diameter 355 mm) roller, pressed down and force feed material for grinding. The upper roller can be lifted hydraulically, that allows along with a long material to process lumpy waste. Furthermore, when processing a heavy material, the operator may increase the force pressing the upper roller material. The machine is equipped with its own hydraulic system (oil tank, hydraulic pump). System volume - 64 liters.
Recycling mother in chips, made four blades (two in each cutter knife pocket), mounted on the drum diameter of 939 mm. The length of one chipper pocket is 609 mm. Chipping knives have two chopping hand. Anvil has four working faces. Release of chips produced through outlet tube, rotating 300 °. The throw chips regulated valve on the output tube. Adjusting the pipes and valves - mechanical. The pipe has an openable bottom for possible inspection.
TAC-750 is equipped with an automatic control system feeder, which is a feedback system (engine speed - the rotation of the drive roller). In the fall of revolutions of the drive motor - feed roller stops automatically until normal engine speed. Direction control of the feed roller (forward, stop, reverse, emergency stop) displayed the same way on the handle, which is located at the end of the supply feeder.
On the outside is dosed installed safety switches (one on each side) to allow instantaneous stop the machine in an emergency situation. The machine is provided with foldable end feed which is raised to the upper position during transport and reduces the length of the machine to 5.40 m.
The engine control unit is equipped with a digital display, which displays the fuel level indicators, hours of operation, voltage, temperature of the surrounding liquid, oil pressure, engine speed. The system automatically turns off the engine when: engine overheating; low oil pressure, low fuel pressure. Battery - 12V is in the closed metal box. Chopper is equipped with a lockable tool box.
- The drive motor Caterpillar C4.4 (138 hp)
- The warranty for chipper - 1 year.
Options for TAC 750:
-
Two-speed tracked chassis with rubber tracks controlled by a multi-function wireless remote control unit
CUMMINS QSB 4.5 (160 hp)
JOHN DEER 4.5N (140 hp)
Clutch PT TECH HPT80T
Precleaner
An enhanced system feed (increase inlet to 457 x 609 mm)
Handle height adjustment pin tube chip
Hydraulic rotation output pipes for chips
Limit switch on the door for access to the engine
Radiator protection
Hydraulic speed control feed roller
Prtivootkatov holder (2 pieces)
Protivootkatov holder (2 pieces) and the rubber wheel chock (2 items)
Cone holder
Holders flags
Overall whips
Tool box (steel)
Front hydraulic support leg
Reinforced support jack 4535 kg (load)
Fenders
Spare tire 265/75 R16
Wheels 285/75 R16 265/75 R16 instead
Spare tire 285/75 R16
Spare wheel
Set of keys for replacement blades
Flashing beacons
Protection block rear light signaling LEXON
Hydraulic winch (including cable 36 meters)
Источник: http://www.workwebsite.ru/joomla/plugins/allvideos.html
|
model |
tympanic |
|
Download window before the knives (at the output feed hopper) (height * width) |
406 х 609 mm |
|
Window loading inlet feed hopper (height * width) |
762 х 1524 mm |
|
length chips |
-- mm |
|
The thickness of the chip |
-- mm |
|
Number of knives on the drum |
4 knives (one working face) |
|
The dimensions of the blades (dl. * Br. * Thick.) |
304*127*12 mm |
|
anvil horizontal |
1 piece (four working faces), steering |
|
Number knife pockets on the drum |
2 pcs |
|
Number of knives in the knife pocket |
2 pcs |
|
drum chipper |
Diameter: 939 mm, width 609 mm |
|
The diameter of the shaft |
74 mm (Bullet Proof) |
|
Drum speed |
1322 rev / min |
|
performance |
to -- t/h |
|
feed system |
The upper feed roller diameter 355 mm, length 609 mm |
|
Lift system and an additional clip of a material |
an upper feed roller |
|
Automatic feeding system |
No Stress |
|
The feed rate of material |
30,2 m/m |
|
hydraulic system |
"Live" hydraulic pump with a direct drive, a modular valve block |
|
Power installed engines |

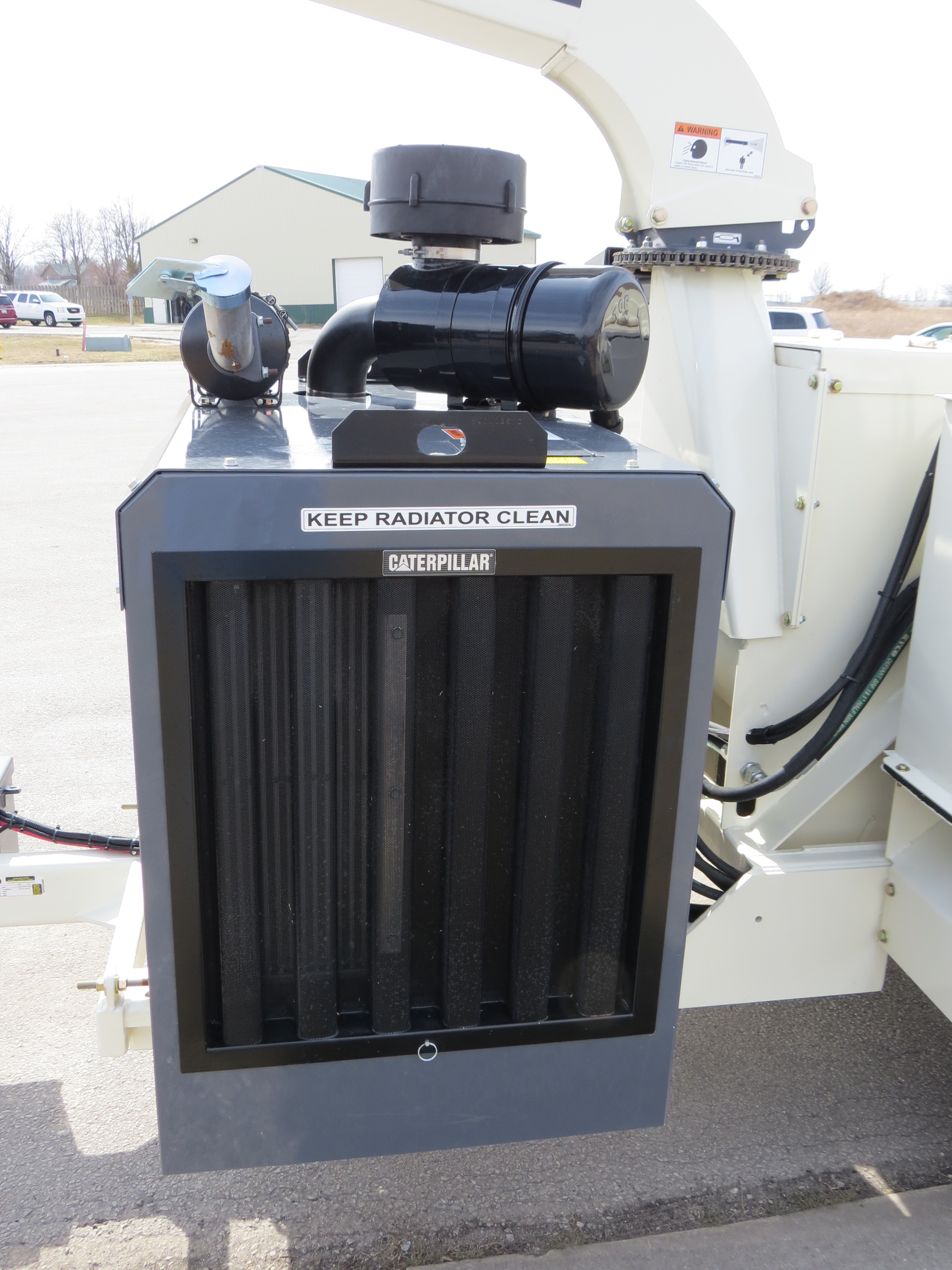

Caterpillar C4.4 138 hp (preheater) |
|
fuel tank |
170 liters, visual level indicator, filler neck with lockable lid |
|
oil tank |
64 liters with filter, visual level indicator, filler neck with lockable lid |
|
fuel consumption |
-- l/h |
|

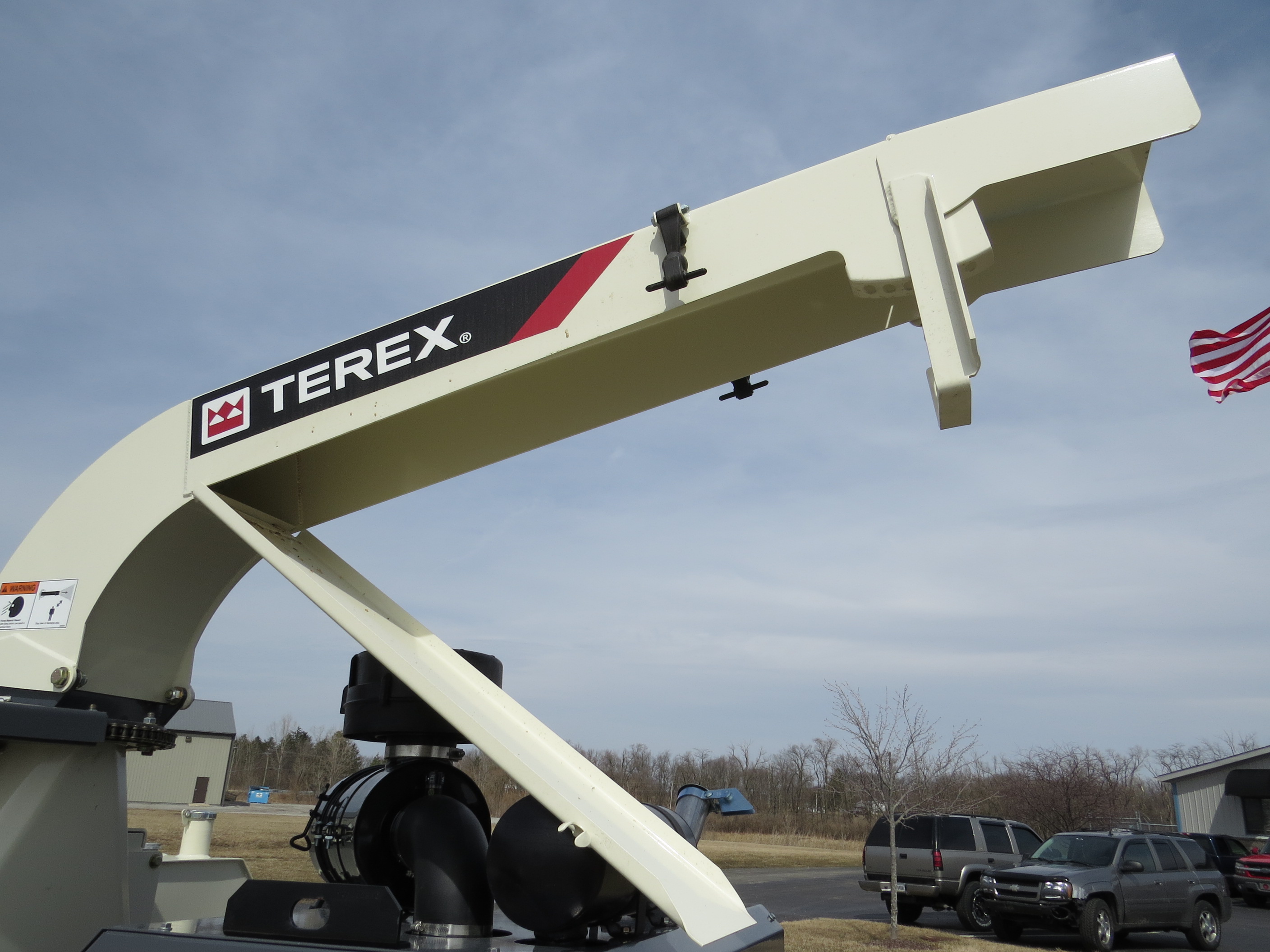

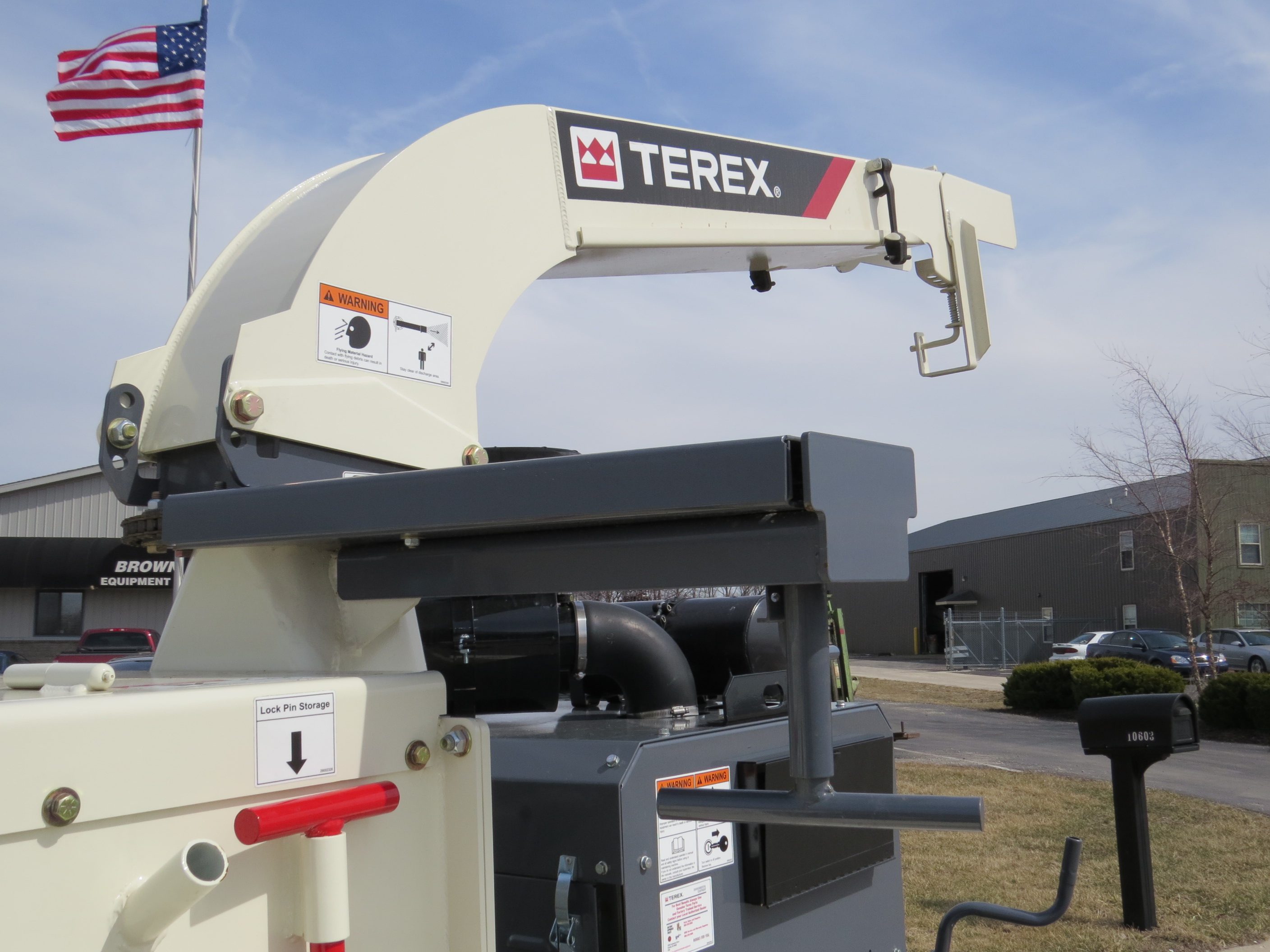

Exhaust pipe for chips |
Rotation 300 °, opened the lower part, adjustable dampers for chips |
|
Adjusting the height of the pipe |
in three positions |
|
jack reference |
Mechanical load capacity 3628 kg |
|
Tow hitch on the choice of the "ring" of 63 mm or type "ball" |
58 mm |
|
safety chains |
Thickness - 9 mm with hooks |
|
Landing Gear |
Torflex load 2730 kg, with electric brakes and emergency stop switch |
|
bus |
265/75 R16 (2 pcs) |
|
Dimensions of the machine working (length * width * height) |
6,45*2,69*1,9 m |
|
Dimensions of the machine transport (length * width * height) |
5,40*2,69*1,9 m |
|
machine weight |
3265 kg |
Mobile chipper TAC-710
Mobile chipper TAC-710 from the company TEREX Environmental Equipment (USA), is designed for processing wood waste (branches, bushes, vershinki, Christmas trees) maximum diameter of 229 mm. The machine is located on its own landing gear (wheels 185/80 R14) and is equipped with a towbar for the transportation of vehicles (SUVs, tractors, trucks). The chassis is equipped with a brake system and the rear light signaling. The machine frame is made of channel 101.6 mm. Tow hitch is equipped with a mechanical jack.
Submission of material to the chipper knives made through the guide feeder with hydraulic top (diameter 305 mm) roller, pressed down and force feed material for grinding. The machine is equipped with its own hydraulic system (oil tank, hydraulic pump). System volume - 54 liters.
Recycling mother in chips, made four blades mounted on a disc diameter of 940 mm. Chipping knives have one side chopping. Anvil has two working faces. Release of chips produced through outlet tube rotating na360 °. The throw chips regulated valve on the output tube. Adjusting the pipes and valves - mechanical.
TAC-710 is equipped with an automatic control system feeder, which is a feedback system (engine speed - the rotation of the drive roller). In the fall of revolutions of the drive motor - feed roller stops automatically until normal engine speed. Direction control of the feed roller (forward, stop, reverse, emergency stop) displayed the same way on the handle, which is located at the end of the supply feeder.
On the outside is dosed installed safety switches (one on each side) to allow instantaneous stop the machine in an emergency situation. The machine is provided with foldable end feed which is raised to the upper position during transport and reduces the length of the machine to 3.46 meters. At the end of the handle feed is controlling the direction of rotation of the supply module is equipped with rolika.Stanok rear light signaling. Battery - 12 is in the closed metal box.
- The drive motor Kohler Command Pro (38 hp)
- The warranty for chipper - 1 year.
Источник: http://www.workwebsite.ru/joomla/plugins/allvideos.html
|
model |
disk |
|
Download window before the knives (at the output feed hopper) (height * width) |
229 x 305 mm |
|
Window loading inlet feed hopper (height * width) |
560 х 965 mm |
|
length chips |
-- mm |
|
The thickness of the chip |
-- mm |
|
Number of blades on the disk |
4 knives (one working face) |
|
The dimensions of the blades (dl. * Br. * Thick.) |
183*102*9,5 mm |
|
anvil horizontal |
1 piece (two working faces) |
|
chipper disc |
Diameter: 940 mm, thickness 32 mm |
|
The diameter of the shaft |
51 mm |
|
The rotational speed of the disc |
1132 rev / min |
|
performance |
to -- t/h |
|
feed system |
The upper feed roller diameter 311 mm, length 305 mm |
|
Automatic feeding system |
No Stress |
|
The feed rate of material |
46 m / min. (Fixed) |
|
hydraulic system |
Drive from the gear pump with a mechanical valve |
|
Power installed engines |
Kohler Command Pro 38 hp (petrol) |
|
fuel tank |
45 l |
|
oil tank |
45 l |
|
Exhaust pipe for chips |
360 ° rotation with adjustable damper for chips |
|
jack reference |
Mechanical, length 381 mm |
|
Tow hitch type "ball" with adjustable |
22 – 51 mm |
|
safety chains |
Thickness - 6.4 mm, length - 762 mm |
|
Landing Gear |
Torflex load 1587 kg, power brakes |
|
bus |
185/80 R14 (2 pcs) |
|
Machine dimensions (length * width * height) |
4,97*2,34*1,63 m |
|
Dimensions of the machine transport (length * width * height) |
3,46*2,34*1,63 m |
|
machine weight |
1270 kg |
More Articles...
