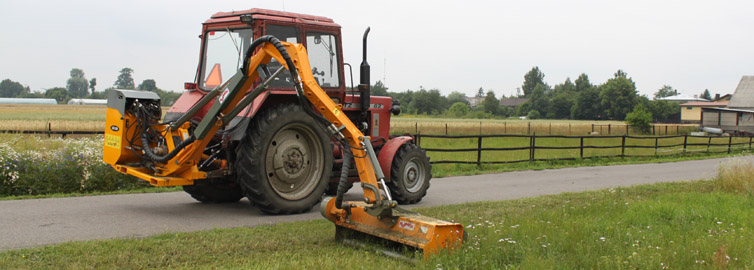

Mower on the manipulator (brush cutter on the manipulator) KR 500 PB
- Details
- Written by webadmin
- Category: materials
 |
KR 500 PB - Professional mower with arm medium-range and tight lateral shift.
Apply for the job to care for roadside mowing grass, bushes, cutting branches and crown molding and so on.
The working body of the mower is a special rotor (shaft) with cutting blades, which is driven by a hydraulic motor hydro operating PTO tractor. Rotor with blades rotating at high speed, cuts the grass and bushes, grinding them to a small fraction (chips), so after the bevel is not required to collect and dispose of the remains of cut. All proposed mowers, adapted for installation on all types of tractors, including for tractors Belarus (MTZ 80 MTZ 82, etc.) and perfectly proved themselves in a variety of industries including road and landscape management, content security zones of power lines, oil and gas pipelines.
Meets all the requirements for participation in traffic on public roads.
KR 500 PB «BASIC» - hydraulic boom + rotary mower GHL 125 (40 hp hydraulic pump and motor is made of aluminum).
KR 500 PB «PRO» - hydraulic boom + rotary mower GHL 125 (51 hp hydraulic pump and motor is made of cast iron).
Mower KR 500 PB can be equipped with almost any other proposed attachment of ROLMEX.
KR 500 PB - equipped with independent hydraulic system, very powerful radiator and 150 liter tank is also equipped with a hydraulic - gas safety device that prevents damage to the hydraulic boom in the case of a collision with an obstacle (eg, rocks, debris, etc.), ie allows you to reject the hydraulic arm to 30 ˚.
Management of hydraulic boom comes from the tractor cab using the control panel hydraulic valves.
As standard, hydraulic steering, as desired, may be equipped with electric control.
|
Technical harakteritsiki KR 500 PB |
|
|

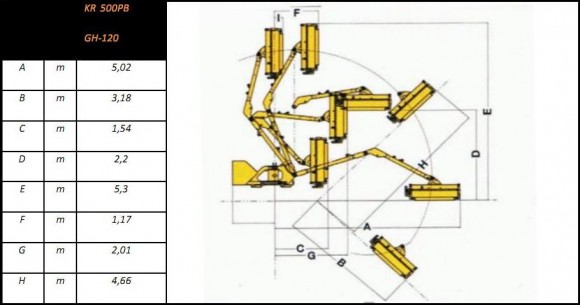

Maximum Reach * |
5 (m) |
|
Machine weight about |
1110 (kg) |
|
pump power |
50/57 (ph) |
|
Oil tank: |
140 (L) |
|
The telescopic boom |
standard |
|
Electronic monitoring system |
option |
|
3-Point Hitch (Cat. II) |
option |
|
5-Point Hitch |
standard |
 |
|
|
|
|
KR 500 PB Additionally, you can retrofit the following equipment:
• Electrical control of the boom
• Road lighting
• Monitoring systems (2 Camera + 7 inch monitor allows you to monitor the work area)
• Oil cooler with thermostat and capacity
