Side mower (mower biased) KB 140/160/180/200/220 HD
- Details
- Written by webadmin
- Category: materials
 |
KB (mower biased) - side rotary mower for mounting on a three-point mounting of the tractor.

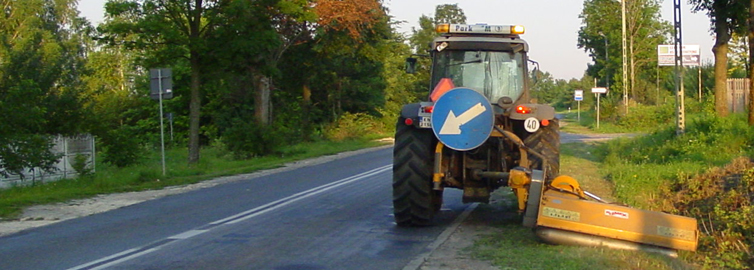

Side mower with hydraulic displacement can mow as the tractor, and aside from the tractor (on the slopes). It is used for cutting and grinding of grass along the road, cutting small brush and clean the vegetation on the sides of roads, on slopes, along the banks of ponds and canals.

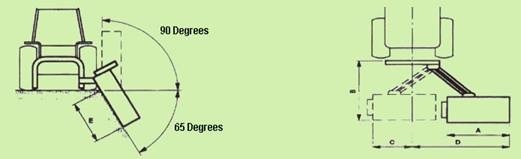

Side mower HF can rotate his head to +90 ° up or down - 65 ° slope.
Mulcher HF is offered with two types of cutting tools «T» type of hammer and is designed for mowing areas with different types of surfaces and different vegetation, the diameter of which does not exceed 5 mm., Blade type «Y» is designed for cutting grass and small shrubs with a diameter less than 3 mm . View the knife to look below.
|
|
Specifications side mower KB |
tractor |
|||||
|
model |
The Work |
Weight (kg) |
lateral |
angle |
Required power HP |
||
|
min. HP |
Max. HP |
||||||
|
KB 140HD |
1,40 |
656 |
2,60 |
-65° |
+90° |
50 |
110 |
|
KB 160HD |
1,60 |
696 |
2,80 |
-65° |
+90° |
60 |
115 |
|
KB 180HD |
1,80 |
748 |
3,00 |
-65° |
+90° |
70 |
120 |
|
KB 200HD |
2,00 |
812 |
3,20 |
-65° |
+90° |
80 |
130 |
|
KB 220HD |
2,20 |
860 |
3,40 |
-65° |
+90° |
95 |
150 |
|
|
||
 standard |
 option |
 |
